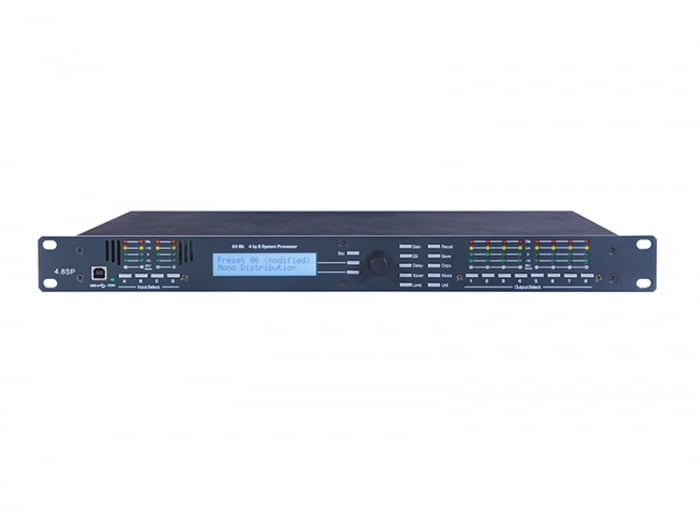

Ashly Protea 4.8SP

Specificatii :

Intrare : Balansata activa, 18K ohms

Interziere Increment : 20uS

Nivel intrare : +20dBu

Crossover tip filtru : Linkwitz-Releu, rama, Butterworth

Gama Gain intrare/iesire : +12/-40dB, 0.1dB Incr

Filtru crossover high-pass : 12, 18, 24 and 48dB/Octave

Iesire : Servo balansat activ, 100 ohms

Gama filtru crossover high-pass : Off to 21.98KHz, 245 pas incr

Nivel iesire maxim : +20dBu

Tip filtru Crossover Low-Pass : Linkwitz-Releu, Rama, Butterworth

Polaritate : 0 or 180 degrees

Filtru crossover low-pass : 12, 18, 24 and 48dB/Octave

Fregventa raspuns : 20Hz-20KHz, +/-0.25dB

Gama filtru crossover low-pass : Off to 21.98KHz, 245 step incr

THD : <0.01% @ 1KHz, +20dBu

Compresor/Limitator : -20dBu to +20dBu, 1dB incr

Gama dinamica : >110dB(20Hz-20KHz) unweighted

Compresor/Limitator : 1.2, 1.5, 2, 3, 4, 6, 10, 20:1, Infinite:1

Zgomot iesire : <-90dBu necantarit

Compresor/Limitator Atac : 0.5ms to 50ms per dB

Filtru EQ : 6 per intrare / 4 per iesire

Compresor/Limitator Release : 10ms to 1Sec per dB

Compresor/Gama Limitator : 20Hz to 10.6KHz

Parametric EQ Gama : +15/-30dB, 0.1 dB incr

Intrare A/D : 24 bit

Conexiuni : XLR
